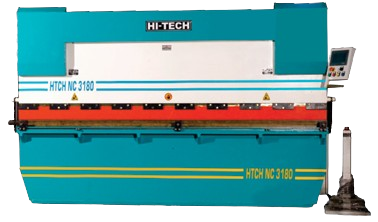

A Press Brake Machine is a critical tool in metalworking, used for bending and shaping sheet metal into precise angles and forms. It operates by pressing a punch into a workpiece that is positioned on a die, applying force to create the desired bend. This machine is essential for manufacturing a wide range of components in industries such as automotive, aerospace, and construction. With advancements in technology.
The frame provides the structural support and rigidity to the press brake. It ensures stability during the bending operation and supports the other components such as the hydraulic system, ram, and bed.
The bed, also called the lower beam or bedplate, provides support for the bottom of the workpiece during bending. It is usually equipped with a die set that helps shape the metal into the desired form. The bed may also have adjustable features to accommodate different die sets and workpiece sizes.
The hydraulic system is responsible for generating the force required to bend the metal. It typically consists of hydraulic cylinders, hydraulic pumps, valves, hoses, and a reservoir. The hydraulic pump pressurizes hydraulic fluid, which is then transferred to the hydraulic cylinders to actuate the bending process.
The ram, also known as the upper beam or slide, is the moving part of the press brake that applies force to the workpiece. It is controlled by the hydraulic system and moves vertically to perform the bending operation.
The die set consists of an upper and lower die that shapes the metal during bending. The upper die is mounted on the ram, while the lower die is fixed to the bed. Die sets come in various shapes and sizes to accommodate different bending requirements, such as V-dies, U-dies, and acute angle dies.
The back gauge is a positioning device located behind the bed that helps accurately position the workpiece for bending. It can be manually adjusted or controlled electronically, depending on the machine's capabilities. The back gauge ensures consistent bending accuracy and repeatability.
Modern hydraulic press brake machines are often equipped with a control system, which may include a CNC (Computer Numerical Control) interface. The control system allows operators to input bending parameters such as bend angle, bend length, and material thickness. CNC controlled press brakes offer precise control over the bending process and can automate repetitive tasks.
